Home > products > Secondary Packaging Point Light > LED Secondary Packaging Point Light Outdoor High Brightness DC24V 1000lm

LED Secondary Packaging Point Light Outdoor High Brightness DC24V 1000lm

Product Details

Place of Origin: Shenzhen

Brand Name: XQD

Certification: CE, RoHS, FCC

Model Number: 3040 secondary packaging point light

Payment & Shipping Terms

Minimum Order Quantity: 100PCS

Price: $0.86 - $1PCS

Packaging Details: XQD PACKING/customized

Delivery Time: 10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/Day

Get Best Price
Highlight:

Secondary Packaging LED Point Light

,

DC24V Secondary Packaging Point Light

,

1000lm Secondary Packaging Point Light

Wattage:
1.92W
Weight:
13g
Installation Method:
Surface Mounted
Voltage:
DC24V
Beam Angle:
140 Degrees
Product Type:
LED Light
Certifications:
CE, RoHS
Ip Rating:
IP68
Luminous Flux:
1000lm
Color Temperature:
3000K-6500K
Dimensions:
54mm*30*11mm
Warranty:
3 Years
Wattage:
1.92W
Weight:
13g
Installation Method:
Surface Mounted
Voltage:
DC24V
Beam Angle:
140 Degrees
Product Type:
LED Light
Certifications:
CE, RoHS
Ip Rating:
IP68
Luminous Flux:
1000lm
Color Temperature:
3000K-6500K
Dimensions:
54mm*30*11mm
Warranty:
3 Years
LED Secondary Packaging Point Light Outdoor High Brightness DC24V 1000lm

LED Secondary Packaging Outdoor Brightness Energy-Saving Point Light



Product features:

Integrated additional features:
Components such as driver circuit and signal receiver can be integrated in the packaging process to make the light source have intelligent control functions.
Simplify installation and maintenance:
The light source after secondary packaging usually has a simpler installation method and lower maintenance requirements, which is easy to operate in the field.


Increase flexibility:
The packaged light source may be more flexible and can be adapted to different installation conditions and design needs.
Reduce costs:
By optimizing the design and production process, secondary packaging can sometimes help reduce the cost of the entire system.



Basic product parameters Product protection parameter
Product model 3040-RGBW Waterproof grade IP68
Product size 60.5mm*15mm*9.5mm Shell flame retardant V-0
Application environment Indoor and outdoor UV resistance grade 4
Product weight About13g Salt spray test Salt spray resistance
Shell material PVC Impact resistance IK10
Maximum number of connections 100PCS/string Electrical safety class Ⅲ class
Center distance Minimum 10CM Safety certification CE FCC ROHS
Average product life 50,000 hours Operating temperature -40℃-55℃
Optional accessories Aluminum groove
Wire core 2x1.0mm²+3x0.3mm²
Wire material PVC
PCB material FR-4 Fiberglass board
Product optical parameters Electrical parameters of the product
LED color RGB Operating voltage DC24V
Luminous Angle 120° Rated power 1.92W
Color resolution 3*16bit Supporting system
Lamp bead SMD5050*6+2835*4LED Control system DMX512
Pixel point luminous flux 78.2 LM Power supply system DC24V Constant voltage
luminance 23-24 cd



Applications:

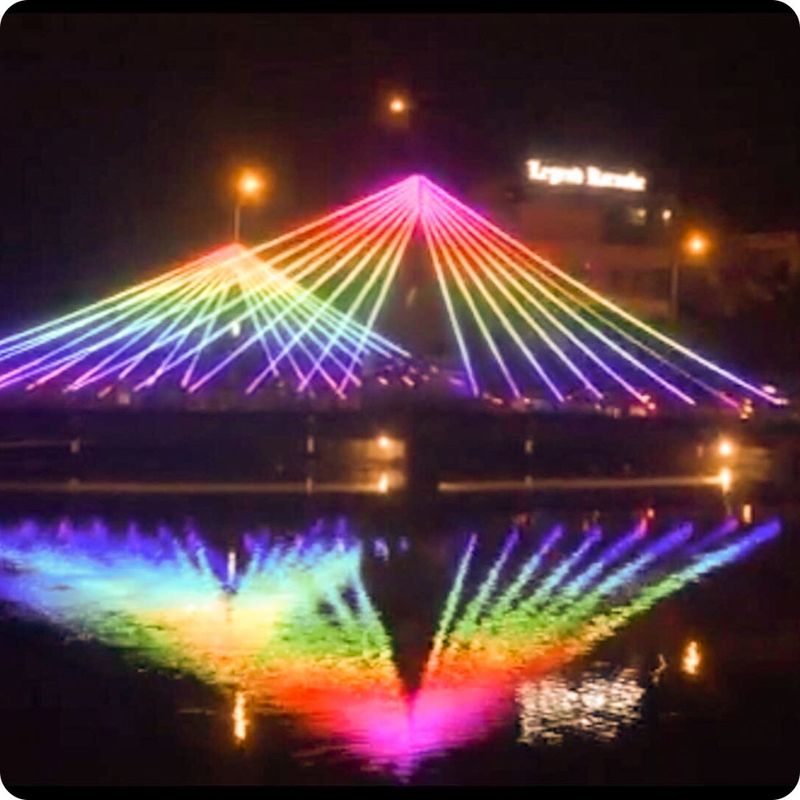

Building node decorative lighting and roof explosion lighting: The high brightness and diversified control methods of the secondary decoration light source make it widely used in the scene of building node decorative lighting and roof explosion lighting.


Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots,

building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting ,

shopping malls, supermarkets, kitchen, display, backlight and so on.
