Building LED Secondary Packaging Point Light Thickening Waterproof IP65 2000lm

Product Details

Place of Origin: Shenzhen

Brand Name: XQD

Certification: CE, RoHS, FCC

Model Number: 50 Two Packaging Points Light

Payment & Shipping Terms

Minimum Order Quantity: 100PCS

Price: $0.71 - $0.93/PCS

Packaging Details: XQD PACKING/customized

Delivery Time: 10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/Day

Get Best Price
Highlight:

Secondary Packaging Point Light 2000lm

,

Secondary Packaging Point Light IP65

,

LED Point Light Thickening Waterproof

Material:
Aluminum
Ip Rating:
IP65
Application:
Secondary Packaging Area
Warranty:
3 Years
Luminous Flux:
2000lm
Product Type:
LED Light
Installation:
Surface Mounted
Color Temperature:
3000K-6000K
Beam Angle:
120°
Dimmable:
Yes
Power:
20W
Lifetime:
50,000 Hours
Material:
Aluminum
Ip Rating:
IP65
Application:
Secondary Packaging Area
Warranty:
3 Years
Luminous Flux:
2000lm
Product Type:
LED Light
Installation:
Surface Mounted
Color Temperature:
3000K-6000K
Beam Angle:
120°
Dimmable:
Yes
Power:
20W
Lifetime:
50,000 Hours
Building LED Secondary Packaging Point Light Thickening Waterproof IP65 2000lm

50Two Packaging -Thicker High Brightness Waterproof Building LED Point Light

Product features:


Technical advantages: Advanced production technology, such as CNC assembly line equipment, is used to ensure the consistency of product quality. Its waterproof performance is extremely high, the protection level can reach IP68, and it can be used in harsh environments such as underwater and underground. In addition, the secondary sealing decorative light source also has a flame retardant level of FV-0, the use of UV resistant packaging materials, can be used outdoors for many years without cracking. The ultra-thin and transparent design makes it have little impact on the building during the day after installation, and even can be used as a decoration when the installation is reasonable, giving the building artistic effect



Basic product parameters Product protection parameter
Product model XQD-DZ105-Ⅰ Waterproof grade IP66
Product size Φ50mm*10mm Shell flame retardant V-0
Shell material PVC Impact resistance IK10
Maximum number of connections 80PCS/string Electrical safety class Ⅲ class
Center distance Minimum 9CM Safety certification CE FCC ROHS
Average product life 50,000 hours Operating temperature -40℃-55℃
Optional accessories Aluminum groove, steel wire buckle
Wire core 2x0.75mm²+3x0.35mm²
Wire material PVC
PCB material FR-4 Fiberglass board
Product optical parameters Electrical parameters of the product
LED color RGB Operating voltage DC24V
Luminous Angle 120° Rated power 1.44W
Color resolution 3*16bit Supporting system
Lamp bead SMD5050*7LED Control system DMX512
Pixel point luminous flux 63.3lm Power supply system DC24V Constant voltage
luminance 22.3cd


Applications:

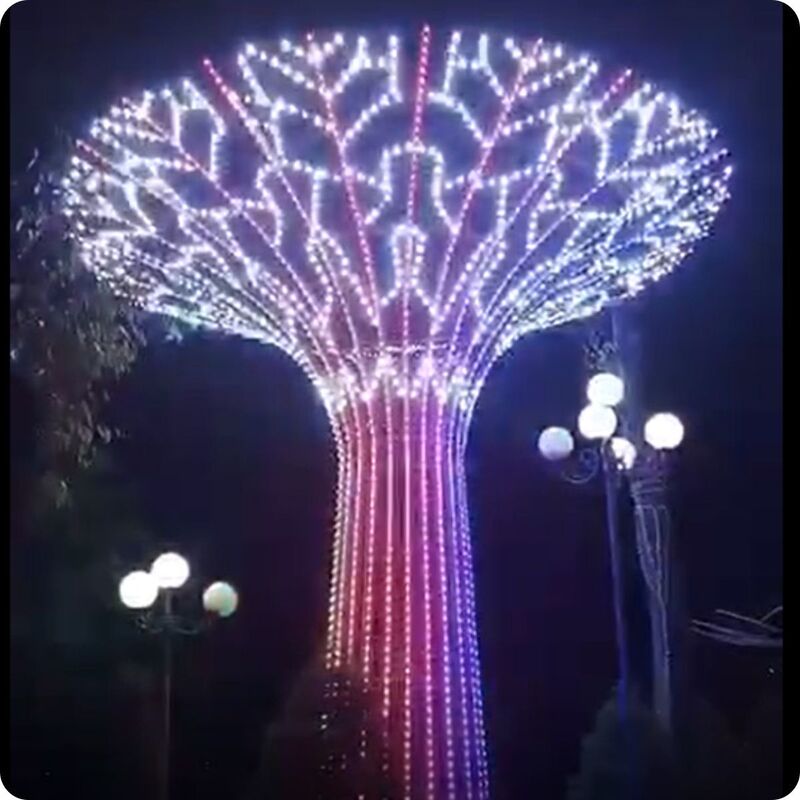

Night lighting: secondary sealing decorative light source has become the mainstream product of outdoor night lighting, widely used in a variety of night lighting projects. Its high protection level and stable performance make it capable of long-term stable operation in harsh outdoor environments
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.


50 Description of technical parameters of secondary seal point light source

Basic product parameters Product protection parameter
Product model XQD-DZ105-Ⅱ-RGBW Waterproof grade IP67
Product size Φ50mm*14mm Shell flame retardant V-0
Application environment Indoor and outdoor UV resistance grade 4
Maximum number of connections 100PCS/string Electrical safety class Ⅲ class
Center distance Minimum 9CM Safety certification CE FCC ROHS
Average product life 50,000 hours Operating temperature -40℃-55℃
Optional accessories Aluminum groove, steel wire buckle
Wire core 2x1mm²+3x0.35mm²
Wire material PVC
PCB material FR-4 Fiberglass board
Product optical parameters Electrical parameters of the product
LED color RGB+W Operating voltage DC24V
Luminous Angle 120° Rated power 1.92W
Color resolution 3*16bit Supporting system
Lamp bead SMD5050*6LED+SMD3535*4LED Control system DMX512
Pixel point luminous flux 65.4lm Power supply system DC24V Constant voltage
luminance 24.5cd
