Home > products > Secondary Packaging Point Light > IP65 Secondary Packaging Point Light Surface Mounted for Park Street Building

IP65 Secondary Packaging Point Light Surface Mounted for Park Street Building

Product Details

Place of Origin: Shenzhen

Brand Name: XQD

Certification: CE, RoHS, FCC

Model Number: 6015 secondary packaging point light

Payment & Shipping Terms

Minimum Order Quantity: 100PCS

Price: $0.43 - $0.71/PCS

Packaging Details: XQD PACKING/customized

Delivery Time: 10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/Day

Get Best Price
Highlight:

IP65 Secondary Packaging Point Light

,

Surface Mounted Point Light IP65

,

Park Secondary Packaging Point Light

Color Temperature:
3000K-6500K
Beam Angle:
120 Degrees
Installation:
Surface Mounted
Ip Rating:
IP65
Dimensions:
100mm X 100mm X 50mm
Type:
Point Light
Light Source:
LED
Power:
1.92W
Voltage:
DC24V
Usage:
Secondary Packaging
Color Temperature:
3000K-6500K
Beam Angle:
120 Degrees
Installation:
Surface Mounted
Ip Rating:
IP65
Dimensions:
100mm X 100mm X 50mm
Type:
Point Light
Light Source:
LED
Power:
1.92W
Voltage:
DC24V
Usage:
Secondary Packaging
IP65 Secondary Packaging Point Light Surface Mounted for Park Street Building

Secondary Packaging Point Light Park Street Building Lighting Point Light

6015 secondary packaging point light High brightness waterproof park street building lighting point light



Product features:



Extended service life:
Improved protection and thermal performance help extend the working life of LED light sources.
Improve safety standards:
Secondary packaging can further improve the safety of the product, such as preventing electric shock, short circuit and other problems.
Adapting to specific environments:
The secondary package can be specially designed according to specific application environments (such as under water, high temperature, etc.) to ensure that the LED light source can work properly in these environments.



Basic product parameters Product protection parameter
Product model XQD-6015 Waterproof grade IP67
Product size 60mm*15mm*10mm Shell flame retardant V-0
Application environment Indoor and outdoor UV resistance grade 4
Center distance Minimum 8CM Safety certification CE FCC ROHS
Average product life 50,000 hours Operating temperature -40℃-55℃
Optional accessories Aluminum groove
Wire core 2x0.75mm²+2x0.35mm²
Wire material PVC
PCB material FR-4 Fiberglass board
Product optical parameters Electrical parameters of the product
LED color RGB Operating voltage DC12V
Luminous Angle 120° Rated power 0.72W
Color resolution 3*8bit Supporting system
Lamp bead SMD5050*3LED Control system DMX512
Pixel point luminous flux 25.2lm Power supply system DC24V Constant voltage
luminance 9.3cd



Applications:



Bridge outline: Use point light sources to outline the outline of the bridge, highlight the building lines, and increase the beauty of the night.

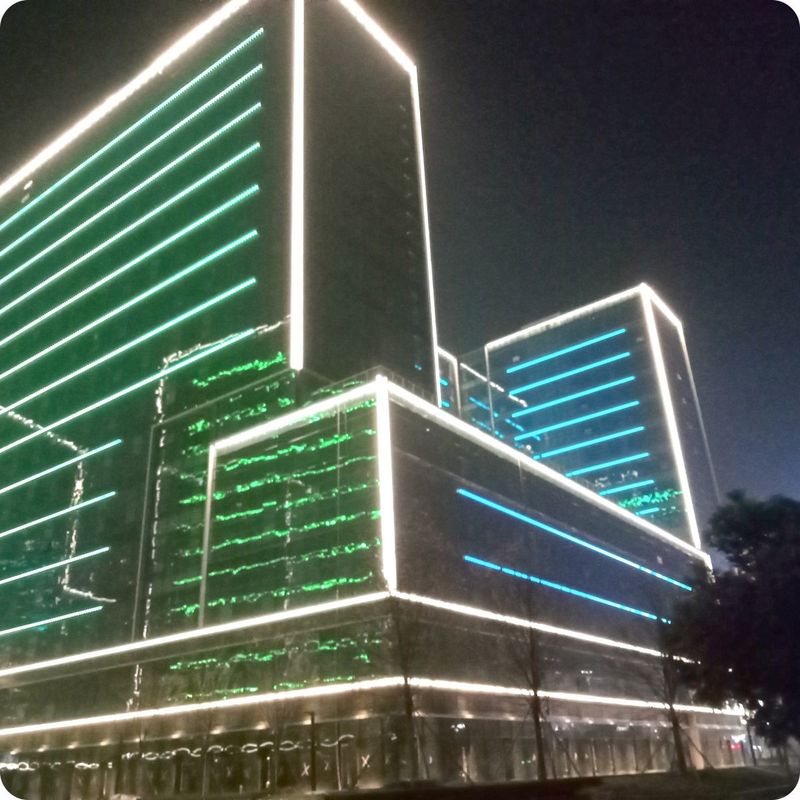

Building lighting: Applied to the facades of tall buildings to create a unique night view effect through color and dynamic changes.
Hotel decoration: Add light and shadow to the exterior of the hotel to enhance the image of the hotel
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots,

building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls,

supermarkets, kitchen, display, backlight and so on.
