Product Details
Place of Origin: Shenzhen
Brand Name: XQD
Certification: CE, RoHS, FCC
Model Number: 20 Two Package Potal Light
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $35.00 - $351.00/square meters
Packaging Details: XQD PACKING/customized
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/Day
Mounting Type: |
Adhesive |
Brightness: |
Adjustable |
Light Source: |
LED |
Type: |
Point Light |
Power Source: |
DC12 |
Color: |
Customized |
Waterproof: |
IP68 |
Material: |
Plastic |
Package Contents: |
2 X Secondary Packaging Point Light |
Mounting Type: |
Adhesive |
Brightness: |
Adjustable |
Light Source: |
LED |
Type: |
Point Light |
Power Source: |
DC12 |
Color: |
Customized |
Waterproof: |
IP68 |
Material: |
Plastic |
Package Contents: |
2 X Secondary Packaging Point Light |

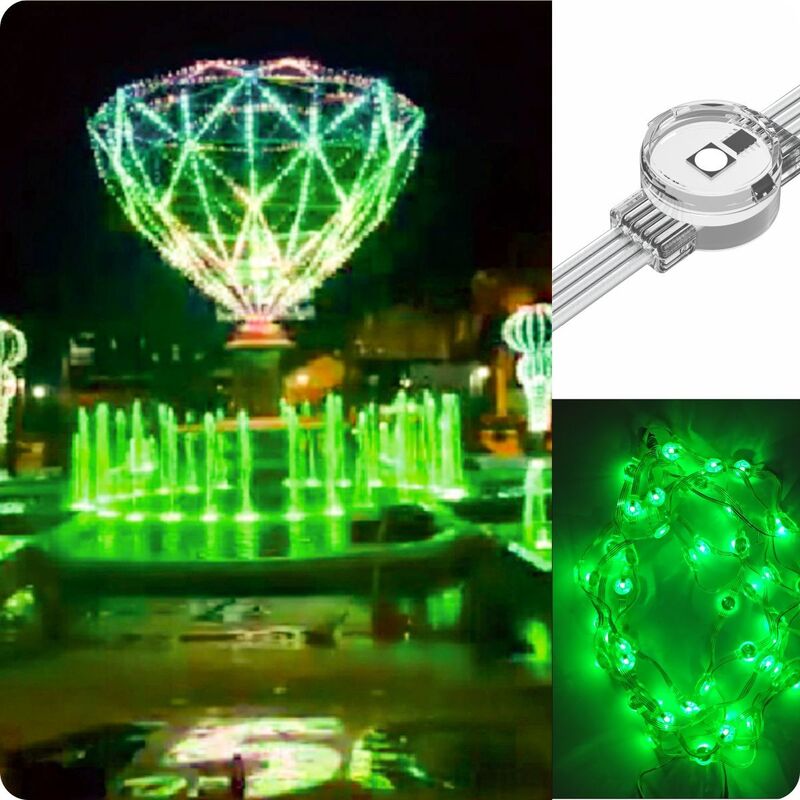

20 Two LED Package Point Light Waterproof Street Bridge Building Lighting
Product features:
Urban night landscape planning
Special planning of urban night scene: With the development of urban construction, many cities begin to pay attention to the planning of night scene lighting, the use of point light source can achieve the beautification of urban night scene and enhance the image of the city.
Lighting of parks, rivers and squares
Beauty makeup: Point light sources can be used to brighten parks, rivers, squares and other places to increase the aesthetics and functionality of these public Spaces.
Large area roof lattice screen
Wall lighting: Point light sources are widely used to make large-area dot-matrix screens on the roof, and the wall lighting of the facade of the building adds vitality to the building through dynamic lighting effects.
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots,
building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting ,
shopping malls, supermarkets, kitchen, display, backlight and so on.
| Basic product parameters | Product protection parameter | ||
| Product model | XQD-DZ102-Ⅰ | Waterproof grade | IP66 |
| Product size | Φ29.8mm*10.5mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About12g | Salt spray test | Salt spray resistance |
| Shell material | PVC | Impact resistance | IK10 |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | ||
| Wire core | 2x0.75mm²+3x0.35mm² | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC12V |
| Luminous Angle | 120° | Rated power | 0.72W |
| Color resolution | 3*8bit | Supporting system | |
| Lamp bead | SMD5050*3LED | Control system | DMX512 |
| Pixel point luminous flux | 21.8lm | Power supply system | DC12V Constant voltage |
