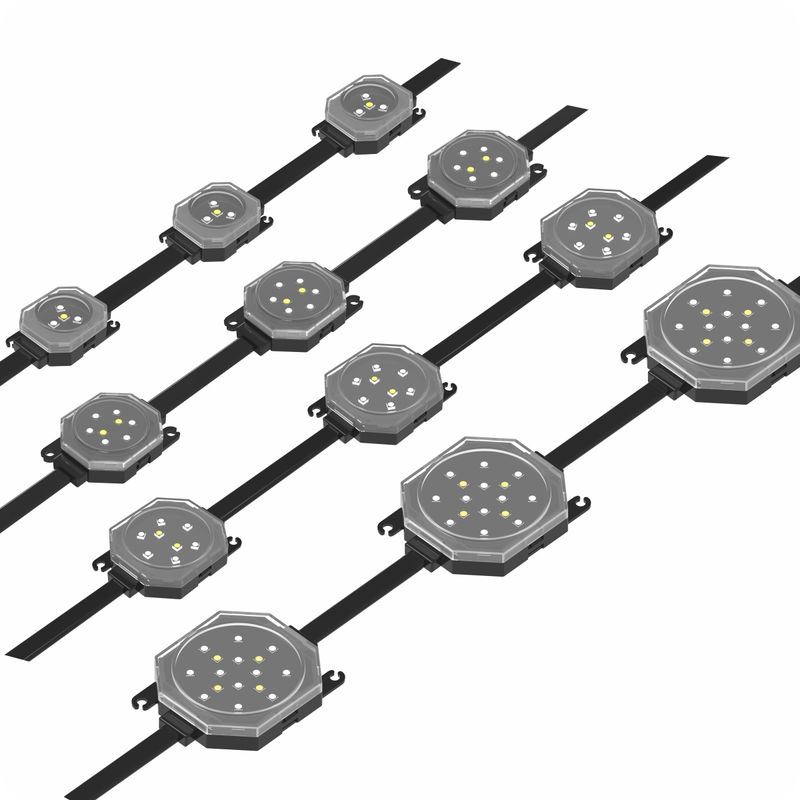

LED point light source outdoor waterproof building lighting project LED pixel light

Name: LED point light source outdoor waterproof building lighting project LED pixel light
Brand: Shenzhen Xinqidian Photo-Electric Co.,Ltd.
SKU: k25/35/45
Price: 0.50 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: XQD

Certification: CE, RoHS, FCC

Model Number: k25/35/45

Payment & Shipping Terms

Minimum Order Quantity: 20 pieces

Price: $0.50 - $0.79/pieces

Packaging Details: XQD PACKING/customized

Delivery Time: 10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/Day

Get Best Price

Product Details

Product Description

Highlight:

Color Temperature(CCT):	6000K (Daylight Alert)	Input Voltage(V):	DC 24V
Warranty(Year):	5-Year	Type:	LED Modules
Support Dimmer:	Yes	Lighting Solutions Service:	Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation
Luminous Efficacy(lm/w):	80	Lifespan (hours):	50000
Working Time (hours):	50000	Chip Material:	Epistar
Emitting Color:	Tri-Color(Red-Blue-Green)	Luminous Intensity:	10000
Luminous Flux(lm):	63.3	Optical Attenuation(%):	2
Power:	0.72-1.92W	Power Dissipation:	DC12-24V
Viewing Angle(°):	120	Color Rendering Index(Ra):	80
Color Temperature:	RGB With IC	Operating Temperature(℃):	-25 - 45
Storage Temperature(℃):	-30 - 60	Usage:	Indoor &Outdoor
IP Rating:	IP68	IC Chip:	TM1914/RT16703
LED Chip:	SMD5050	Name:	K Series Point Light

Color Temperature(CCT):	6000K (Daylight Alert)
Input Voltage(V):	DC 24V
Warranty(Year):	5-Year
Type:	LED Modules
Support Dimmer:	Yes
Lighting Solutions Service:	Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation
Luminous Efficacy(lm/w):	80
Lifespan (hours):	50000
Working Time (hours):	50000
Chip Material:	Epistar
Emitting Color:	Tri-Color(Red-Blue-Green)
Luminous Intensity:	10000
Luminous Flux(lm):	63.3
Optical Attenuation(%):	2
Power:	0.72-1.92W
Power Dissipation:	DC12-24V
Viewing Angle(°):	120
Color Rendering Index(Ra):	80
Color Temperature:	RGB With IC
Operating Temperature(℃):	-25 - 45
Storage Temperature(℃):	-30 - 60
Usage:	Indoor &Outdoor
IP Rating:	IP68
IC Chip:	TM1914/RT16703
LED Chip:	SMD5050
Name:	K Series Point Light

LED point light source outdoor waterproof building lighting project LED pixel light

LED point light source outdoor waterproof building lighting project LED pixel light

LED Point Light High Brightness Pixel Light for Outdoor Building Street Lighting

High quality 24v round led pixel module light string for building

Product features:

Long lifespan: typically up to 50000 hours, more than 10 times longer than traditional lighting fixtures, reducing the frequency of light source replacement and maintenance costs
High brightness: Using high brightness LED chips, it can meet various lighting needs
Colorful: It can achieve multiple color lighting effects and create colorful lighting effects by changing and combining lights through a controller
Easy installation: small size, light weight, easy installation, can adapt to various places

K25 Dust proof engineering point light source technical parameters

Basic product parameters		Product protection parameter
Product model	XQD-K25	Waterproof grade	IP67
Product size	35mm30mm15.2mm	Shell flame retardant	V-0
Application environment	Indoor and outdoor	UV resistance grade	4
Product weight	About 22g	Salt spray test	Salt spray resistance
Shell material	PC	Impact resistance	IK10
Maximum number of connections	100PCS/string	Electrical safety class	Ⅲ class
Center distance	Minimum 10CM	Safety certification	CE FCC ROHS
Average product life	50,000 hours	Operating temperature	-40℃-55℃
Optional accessories	Aluminum groove, steel wire buckle
Wire core	2x0.75mm2+3x0.3mm2
Wire material	PVC
PCB material	FR-4 Fiberglass board
Product optical parameters		Electrical parameters of the product
LED color	RGB	Operating voltage	DC12V
Luminous Angle	120°	Rated power	0.72W
Color resolution	3*8bit	Supporting system
Lamp bead	SMD3535*3LED	Control system	DMX512
Pixel point luminous flux	21LM	Power supply system	DC12V Constant voltage
luminance	6-7cd

Applications:

Outline:
The use of point light sources to outline the buildings around the commercial square, emphasizing the shape and structure of the building, especially at night, such lighting can highlight the unique features of the building.
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
