Permanent Holiday Lights 3D Pixel LED String IP67 With 10.4lm Luminous Flux

Name: Permanent Holiday Lights 3D Pixel LED String IP67 With 10.4lm Luminous Flux
Brand: Shenzhen Xinqidian Photo-Electric Co.,Ltd.
SKU: CE, RoHS, FCC
Price: 0.35 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: XQD

Certification: CE, RoHS, FCC

Model Number: CE, RoHS, FCC

Payment & Shipping Terms

Minimum Order Quantity: 1000 pieces

Price: $0.35 - $0.40/pieces

Packaging Details: XQD PACKING/customized

Delivery Time: 10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/Day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3D Pixel LED String, IP67 3D Pixel LED String, 10.4lm 3D Pixel LED String


Color Temperature(CCT):	5000K (Daylight)	Input Voltage(V):	DC 12V
Warranty(Year):	3-Year	Type:	LED Modules
Support Dimmer:	Yes	Lighting Solutions Service:	Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation
Luminous Efficacy(lm/w):	11.7	Lifespan (hours):	50000
Working Time (hours):	50000	Product Weight（kg）:	11
Chip Material:	AlGaInP	Emitting Color:	Tri-Color(Red-Blue-Green)
Luminous Flux(lm):	10.4lm	Optical Attenuation(%):	2
Power:	0.72W	Viewing Angle(°):	360
Color Rendering Index(Ra):	80	Operating Temperature(℃):	-40 - 55
Storage Temperature(℃):	-40 - 55	Product Name:	Led Pixel Light
Application:	Decoration	Voltage:	DC 12-24V
Color:	Color RGB	Waterproof Grade:	IP65 IP67 IP68
LED Type:	SMD3535	Size:	23*25mm
Keyword:	Led Pixel Light Source	Material:	PVC+PCB

Color Temperature(CCT):	5000K (Daylight)
Input Voltage(V):	DC 12V
Warranty(Year):	3-Year
Type:	LED Modules
Support Dimmer:	Yes
Lighting Solutions Service:	Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation
Luminous Efficacy(lm/w):	11.7
Lifespan (hours):	50000
Working Time (hours):	50000
Product Weight（kg）:	11
Chip Material:	AlGaInP
Emitting Color:	Tri-Color(Red-Blue-Green)
Luminous Flux(lm):	10.4lm
Optical Attenuation(%):	2
Power:	0.72W
Viewing Angle(°):	360
Color Rendering Index(Ra):	80
Operating Temperature(℃):	-40 - 55
Storage Temperature(℃):	-40 - 55
Product Name:	Led Pixel Light
Application:	Decoration
Voltage:	DC 12-24V
Color:	Color RGB
Waterproof Grade:	IP65 IP67 IP68
LED Type:	SMD3535
Size:	23*25mm
Keyword:	Led Pixel Light Source
Material:	PVC+PCB

Permanent Holiday Lights 3D Pixel LED String IP67 With 10.4lm Luminous Flux

IP67 Permanent Holiday Lights 3D Pixel LED String With 10.4lm Luminous Flux

Product feature

1. 360 degree luminous, no shadow design;

2. chic appearance of the product, can be customized in a variety of shapes;

3. High-quality resistive rubber material, UV-resistant, weather-resistant;

4. Suitable for 3D modeling lights, Netflix Hall, KTV decoration, supermarket 3D screen, hotel decoration, APP dot matrix 3D interactive screen

5. Can be used with professional interactive system to achieve cell phone APP interaction, sound and light linkage, human body induction interaction;

Specification

Basic product parameters		Product protection parameter
Product model	XQD-3D-ZSSJ	Waterproofing class	IP66
Product size	Φ23*28mm	Case flame retardant	V-0
Application environment	Outdoor	UV resistance grade	4
Single weight of product	About 11g	Salt spray test	Salt spray resistance
Shell material	PC material	Impact resistance	IK10
Maximum number of connections	100PCS/ string	Electrical safety class	Class III
Center spacing	Minimum 5CM±0.5mm	Security authentication	CE FCC RoHs
Average product life	50,000 hours	Operating temperature	-40℃-55℃
Optional accessories	T-terminal/Crystal Pendant	Tensile strength	≤7.5kg
Wire core	4x0.25mm²	Instant tensile strength	≤35kg
Wire material	PVC
PCB material	FR-4 glass fiber board
Product optical parameters		Electrical parameters of the product
LED color	RGB	Operating voltage	DC12V
Luminous Angle	360°	Rated power	0.72W
Color resolution	3x12bit	Supporting system
Lamp bead package	SMD 3535*2LED	Control system	SPI
Pixel point luminous flux	11.7lm	Power supply system	DC12V constant voltage
brightness	4.3cd

Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.

Company Introduction

ShenZhen XinQiDan Optoelectronic CO.,LTD. established in February 2007,is a professional high tech Led enterprises engaged in R&D,production .sales and service .We have more than 200 employees, and twenty technical people currently .

The factory covers an area of more than 6,000 square meters and imports advance modern professional production equipment and testing equipment . Technology reaches advanced level of similar products at home and abroad. Company have been one of the largest manufacturers in led pixel light . various LED lighting festival, and building lighting projects. The products are sold to worldwide market s .including Europe, Asia and the Middle East, Which covers 100 countries and more than 30 domestic provinces and cities .We have developed our own advertising light source and lighting products, Own Patent.

Advertising light source services :Led Pixel Light. 3D Pixel light .Led controller .High brightness Led Strips etc led products .widely used in advertising and urban lighting projects.

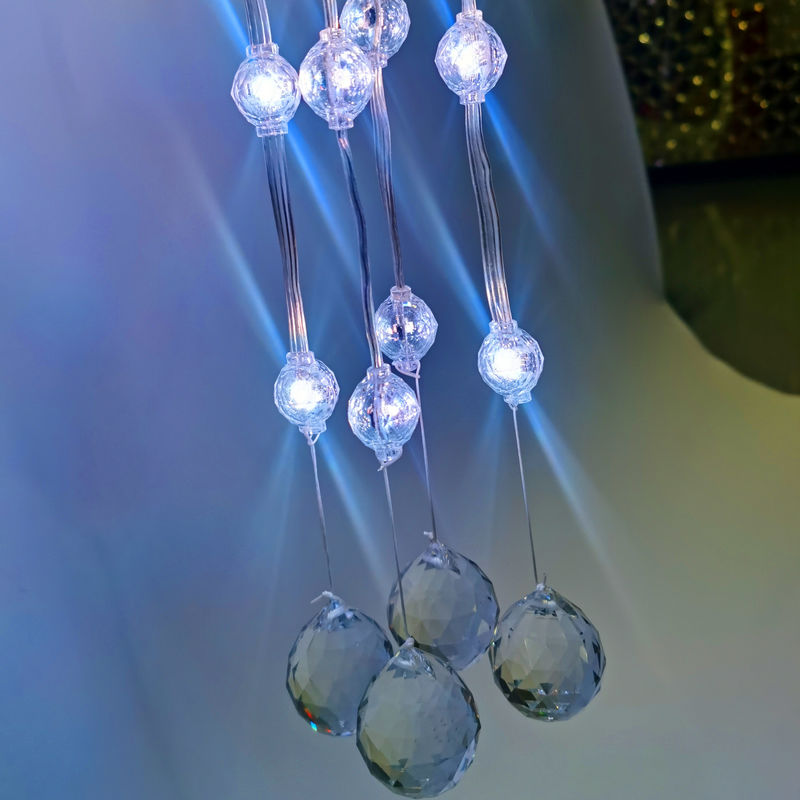

Product picture
