Smart Christmas Permanent Led Point Lights 24v 0.72w Waterproof IP68



Product features:

Energy efficient:
LED point light source itself has the characteristics of high light efficiency and low energy consumption, combined with intelligent control, can achieve further energy saving.
Remote control:
Through the Internet or wireless network, users can remotely control the switch, brightness, color temperature, etc., of LED point light source.
Automatic adjustment:
The intelligent system can automatically adjust the lighting according to the ambient light, temperature, humidity and other factors to achieve the optimal lighting effect.
1. Use an enlarged wire diameter point light source to support longer-distance power supply and signal transmission.
2. Flexible installation method: the product is small in size, light in weight, and equipped with soft steel wire ropes.
Flexible and diverse installation methods can be achieved.
3. It has the function of resuming the transmission of dead pixels. Even if one of the pixels is damaged, it will not affect the subsequent pixels.
signal reception to minimize product failure rate.
4. Multiple distribution options to flexibly control project costs



Product basic parameters		Product protection parameters
Model	7723	Waterproof grade	IP67
size	77*23*14mm	Flame retardant	V-0
Application environment	Indoor and outdoor	UV resistance level	4
Product unit weight	about 30.5g	Salt spray test	Salt spray resistance
Shell material	PVC	Impact resistance	IK10
Maximum number of connections	100PCS/string	Electrical safety grade	Ⅲ class
Center distance	min 9CM	Safety certification	CE FCC RoHS
Average lifespan	50000 hours	Operating temperature	-40℃-55℃
Optional accessories	Aluminum groove, steel wire buckle	Product electrical parameters
Wire core	2x0.75mm2+3x0.3mm2	Working voltage	DC24V
PCB material	FR-4 glass fiber board	1.44Control system	DMX512
Product optical parameters		Power system	DC24V constant voltage
LED color	RGB
Luminous angle	120°	Luminous flux of pixel point	48.72lm
Color Resolution	3*16bit	Luminous brightness	14.6cd
Lamp beads	SMD3535*6LED+2LED



Applications:

City Landscape Lighting:
Bridge lighting: The intelligent control system can realize the color transformation and brightness adjustment of the bridge lighting to create a dynamic night view effect.

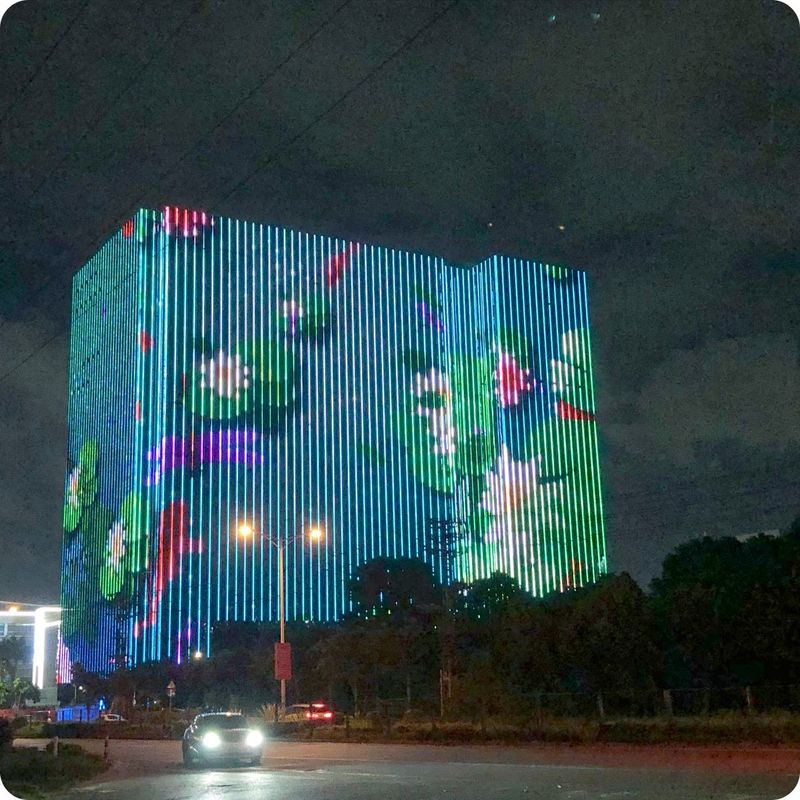

Building facade lighting: Automatically adjust the lighting effect of the building facade according to different time or activity needs.



ShenZhen XinQiDan Optoelectronic CO.,LTD.Companies specializing in the design and implementation of urban lighting, which provide a range of services from planning, design, installation to maintenance, focusing on the use of point light technology to enhance the lighting of urban night scenes and public Spaces
