Product Details
Place of Origin: Guangdong, China
Brand Name: XQD
Certification: CE, RoHS, FCC
Model Number: XQD-DS40
Payment & Shipping Terms
Minimum Order Quantity: 500 pieces
Price: $1.60/pieces 500-999 pieces
Packaging Details: XQD PACKING/customized
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/Day
Item Type: |
Point Lights |
Light Source: |
LED |
Lighting Solutions Service: |
Agi32 Layout, Onsite Metering, DIALux Evo Layout, Auto CAD Layout, Lighting And Circuitry Design, Project Installation, LitePro DLX Layout |
Product Weight（kg）: |
23.5 |
Input Voltage(V): |
DC24V |
Lamp Luminous Flux(lm): |
108lm |
Working Temperature(℃): |
-40 - 55 |
Lamp Body Material: |
PVC |
IP Rating: |
IP67 |
Application: |
LANDSCAPE |
Voltage: |
DV24V |
IP Grade: |
IP 66 |
Color: |
RGB Multi Color Changing |
View Angle: |
100-120degree |
Product Name: |
Led Point Light Source |
Controller: |
DMX512 Contoller |
Power: |
1.44W |
Item Type: |
Point Lights |
Light Source: |
LED |
Lighting Solutions Service: |
Agi32 Layout, Onsite Metering, DIALux Evo Layout, Auto CAD Layout, Lighting And Circuitry Design, Project Installation, LitePro DLX Layout |
Product Weight（kg）: |
23.5 |
Input Voltage(V): |
DC24V |
Lamp Luminous Flux(lm): |
108lm |
Working Temperature(℃): |
-40 - 55 |
Lamp Body Material: |
PVC |
IP Rating: |
IP67 |
Application: |
LANDSCAPE |
Voltage: |
DV24V |
IP Grade: |
IP 66 |
Color: |
RGB Multi Color Changing |
View Angle: |
100-120degree |
Product Name: |
Led Point Light Source |
Controller: |
DMX512 Contoller |
Power: |
1.44W |

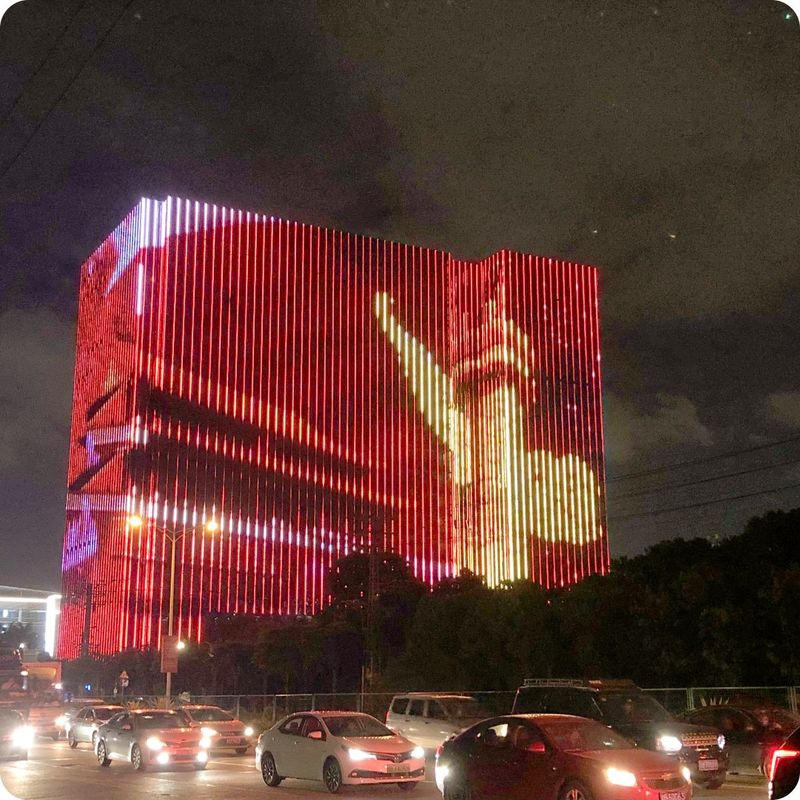

LED point light outdoor waterproof RGB exterior wall advertising point light
Product Features
Point light sources are widely used in innovative design, and they are the first choice of designers and innovators due to their small size, flexibility and customizability. Here are some specific applications of point light sources in innovative design:
Interactive art Installation:
Create interactive art installations with point light sources that are activated by touch, sound or movement to provide an immersive experience for the viewer.
Business Show:
In commercial Spaces, point light sources can be used for display stands, Windows and product displays, highlighting products through precisely controlled light.
|
Product basic parameters
|
Product protection parameters
|
|
||
|
Model
|
XQD-DS40
|
Waterproof grade
|
IP67
|
|
|
size
|
Φ40mm*11.4mm
|
Flame retardant
|
V-0
|
|
|
Application environment
|
Indoor and outdoor
|
UV resistance level
|
4
|
|
|
Product unit weight
|
about 23.5g
|
Salt spray test
|
Salt spray resistance
|
|
|
Shell material
|
PC
|
Impact resistance
|
IK10
|
|
|
Maximum number of connections
|
140PCS/string
|
Electrical safety grade
|
Ⅲ class
|
|
|
Center distance
|
min 7CM
|
Safety certification
|
CE FCC RoHS
|
|
|
Average lifespan
|
50000 hours
|
Operating temperature
|
-40℃-55℃
|
|
|
Optional accessories
|
Aluminum groove, steel wire buckle
|
Product electrical parameters
|
|
|
|
Wire core
|
2x1.0mm²
|
Working voltage
|
DC24V
|
|
|
Wire material
|
PVC
|
Rated power
|
1.44W
|
|
|
PCB material
|
FR-4 glass fiber board
|
Control system
|
Built-in constant current system
|
|
|
Product optical parameters
|
Power system
|
DC24V constant voltage
|
|
|
|
LED color
|
monochrome
|
|
|
|
|
Luminous angle
|
120°
|
Luminous flux of pixel point
|
108lm
|
|
|
Color Resolution
|
3*16bit
|
Luminous brightness
|
32.6cd
|
|
|
Lamp beads
|
SMD2835*6LED
|
|
|
|
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
ShenZhen XinQiDan Optoelectronic CO.,LTD.Provide led linear point light source grid screen transparent screen grid screen 3D pixel light support customization services, product environmental performance is good, can be customized according to the specific requirements of customers.
