Product Details
Place of Origin: Guangdong, China
Brand Name: XQD
Certification: CE, RoHS, FCC
Model Number: XQD-P60
Payment & Shipping Terms
Minimum Order Quantity: 1000 pieces
Price: $1.00/pieces 1000-1999 pieces
Packaging Details: XQD PACKING/customized
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/Day
Item Type: |
Point Lights |
Light Source: |
LED |
Lighting Solutions Service: |
Agi32 Layout, Onsite Metering, DIALux Evo Layout, Auto CAD Layout, Lighting And Circuitry Design, Project Installation, LitePro DLX Layout |
Product Weight（kg）: |
44 |
Input Voltage(V): |
DC24V |
Lamp Luminous Flux(lm): |
40lm |
Working Temperature(℃): |
-40 - 55 |
Lamp Body Material: |
PVC |
IP Rating: |
IP67 |
Emitting Color: |
Changeable |
Application: |
LANDSCAPE |
Warranty(Year): |
2-Year |
Voltage: |
DV24V |
IP Grade: |
IP 67 |
LED Light Source: |
SMD5050 |
Color: |
RGB Multi Color Changing |
View Angle: |
100-120degree |
Material: |
PVC Injection |
Product Name: |
Led Point Light Source |
Controller: |
DMX512 Contoller |
Power: |
2.88W |
Item Type: |
Point Lights |
Light Source: |
LED |
Lighting Solutions Service: |
Agi32 Layout, Onsite Metering, DIALux Evo Layout, Auto CAD Layout, Lighting And Circuitry Design, Project Installation, LitePro DLX Layout |
Product Weight（kg）: |
44 |
Input Voltage(V): |
DC24V |
Lamp Luminous Flux(lm): |
40lm |
Working Temperature(℃): |
-40 - 55 |
Lamp Body Material: |
PVC |
IP Rating: |
IP67 |
Emitting Color: |
Changeable |
Application: |
LANDSCAPE |
Warranty(Year): |
2-Year |
Voltage: |
DV24V |
IP Grade: |
IP 67 |
LED Light Source: |
SMD5050 |
Color: |
RGB Multi Color Changing |
View Angle: |
100-120degree |
Material: |
PVC Injection |
Product Name: |
Led Point Light Source |
Controller: |
DMX512 Contoller |
Power: |
2.88W |

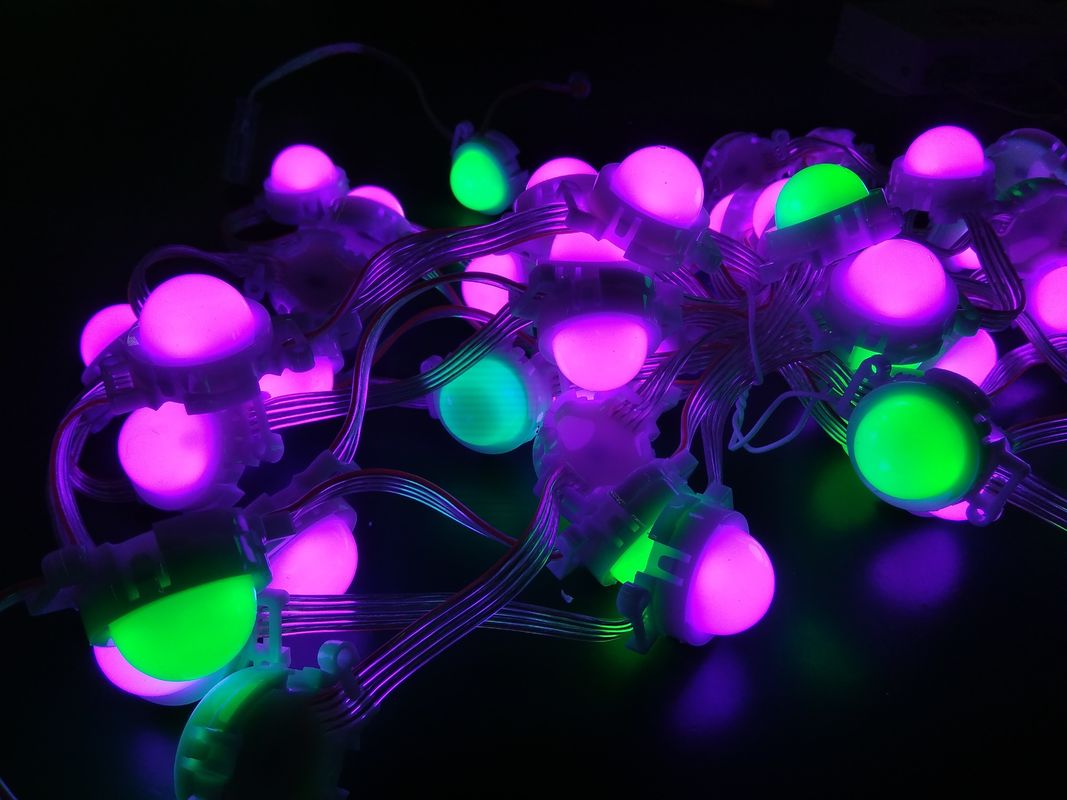

Newest 60mm Dc24v Waterproof IP67 Led Point RGB Pixel Control Led Pixel Light
Product features:
To meet special design requirements:
Custom point light sources can be manufactured according to project-specific design requirements, such as size, shape, color, and brightness, to better fit into the overall design scheme.
Optimize the lighting effect:
Through customization, the Angle, brightness and color temperature of the beam can be precisely controlled to achieve the desired lighting effect, reduce light pollution and improve lighting efficiency.
P60 bulb bulb light source technical parameters
| Basic product parameters | Product protection parameter | ||
| Product model | P60-RGB | Waterproof grade | IP67 |
| Product size | Ø60mm*55.8mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About44g | Salt spray test | Salt spray resistance |
| Shell material | PC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 10CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | ||
| Wire core | 2x0.75mm²+3x0.3mm² | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC24V |
| Luminous Angle | 120° | Rated power | 1.44W |
| Color resolution | 3*16bit | Supporting system | |
| Lamp bead | SMD3535*6LED | Control system | DMX512 |
| Pixel point luminous flux | 40 LM | Power supply system | DC24V Constant voltage |
| luminance | 12-12.5 cd | ||
