Product Details
Place of Origin: Guangdong, China
Brand Name: XQD
Certification: CE, RoHS, FCC
Model Number: XQD-P35/45/60
Payment & Shipping Terms
Minimum Order Quantity: 20 pieces
Price: $0.70 - $0.92/pieces
Packaging Details: XQD PACKING/customized
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/Day
Color Temperature(CCT): |
5000 |
Input Voltage(V): |
DC 12V |
Warranty(Year): |
3-Year |
Type: |
LED Modules |
Support Dimmer: |
Yes |
Lighting Solutions Service: |
Lighting And Circuitry Design, Auto CAD Layout, Project Installation |
Luminous Efficacy(lm/w): |
8 |
Lifespan (hours): |
50000 |
Working Time (hours): |
50000 |
Luminous Intensity: |
10000 |
Luminous Flux(lm): |
8.8lm |
Optical Attenuation(%): |
2 |
Power: |
0.3W |
Power Dissipation: |
DC12V |
Viewing Angle(°): |
120-180 |
Color Rendering Index(Ra): |
80 |
Color Temperature: |
RGB With IC |
Operating Temperature(℃): |
-25 - 45 |
Storage Temperature(℃): |
-30 - 60 |
Usage: |
Indoor &Outdoor |
IP Rating: |
IP68 |
Warranty: |
3 Years |
Lifespan: |
>50000hours |
IC Chip: |
5050 |
Application: |
Building |
Voltage: |
12V |
Color: |
RGB |
Certification1: |
RoHS |
Color Temperature(CCT): |
5000 |
Input Voltage(V): |
DC 12V |
Warranty(Year): |
3-Year |
Type: |
LED Modules |
Support Dimmer: |
Yes |
Lighting Solutions Service: |
Lighting And Circuitry Design, Auto CAD Layout, Project Installation |
Luminous Efficacy(lm/w): |
8 |
Lifespan (hours): |
50000 |
Working Time (hours): |
50000 |
Luminous Intensity: |
10000 |
Luminous Flux(lm): |
8.8lm |
Optical Attenuation(%): |
2 |
Power: |
0.3W |
Power Dissipation: |
DC12V |
Viewing Angle(°): |
120-180 |
Color Rendering Index(Ra): |
80 |
Color Temperature: |
RGB With IC |
Operating Temperature(℃): |
-25 - 45 |
Storage Temperature(℃): |
-30 - 60 |
Usage: |
Indoor &Outdoor |
IP Rating: |
IP68 |
Warranty: |
3 Years |
Lifespan: |
>50000hours |
IC Chip: |
5050 |
Application: |
Building |
Voltage: |
12V |
Color: |
RGB |
Certification1: |
RoHS |
RGB LED Pixel Light Display with 12V Input Voltage and DMX Control P35 P45 P60
P35 project point light source technical parameters
Basic product parameters | Product protection parameter | ||
Product model | P35-PM-RGB | Waterproof grade | IP67 |
Product size | Ø35mm*15.6mm | Shell flame retardant | V-0 |
Application environment | Indoor and outdoor | UV resistance grade | 4 |
Product weight | About23g | Salt spray test | Salt spray resistance |
Shell material | PC | Impact resistance | IK10 |
Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
Center distance | Minimum 8CM | Safety certification | CE FCC ROHS |
Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
Optional accessories | Aluminum groove, steel wire buckle | ||
Wire core | 2x0.75mm²+3x0.3mm² | ||
Wire material | PVC | ||
PCB material | FR-4 Fiberglass board | ||
Product optical parameters | Electrical parameters of the product | ||
LED color | RGB | Operating voltage | DC12V |
Luminous Angle | 120° | Rated power | 0.72W |
Color resolution | 3*8bit | Supporting system | |
Lamp bead | SMD3535*3LED | Control system | DMX512 |
Pixel point luminous flux | 18 LM | Power supply system | DC12V Constant voltage |
luminance | 5-6 cd |

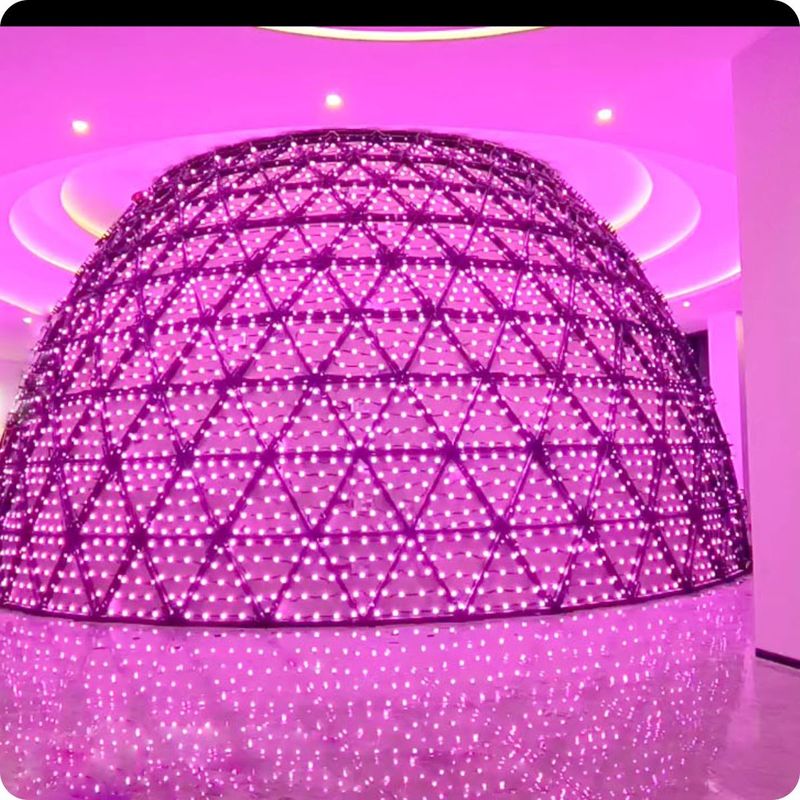

Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
