Product Details
Place of Origin: Guangdong, China
Brand Name: XQD
Certification: CE, RoHS, FCC
Model Number: xr30/40/50
Payment & Shipping Terms
Minimum Order Quantity: 20 pieces
Price: $0.64 - $0.93/pieces
Packaging Details: XQD PACKING/customized
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/Day
Color Temperature(CCT): |
5000 |
Input Voltage(V): |
DC 24V |
Warranty(Year): |
3-Year |
Type: |
LED Modules |
Support Dimmer: |
Yes |
Lighting Solutions Service: |
Lighting And Circuitry Design, Project Installation |
Luminous Efficacy(lm/w): |
8 |
Lifespan (hours): |
50000 |
Working Time (hours): |
50000 |
Product Weight（kg）: |
1 |
Chip Material: |
Epistar |
Emitting Color: |
Full Color |
Luminous Intensity: |
10000 |
Luminous Flux(lm): |
8-12 |
Optical Attenuation(%): |
2 |
Power: |
0.72W |
Power Dissipation: |
DC24V |
Viewing Angle(°): |
120-180 |
Color Rendering Index(Ra): |
80 |
Color Temperature: |
RGB With IC |
Storage Temperature(℃): |
-30 - 60 |
Usage: |
Indoor &Outdoor |
LED Type: |
Pixel Light |
Warranty: |
3 Years |
Size Of Led Light: |
30mm |
Application: |
Stage/KTV/shopping Mall |
Color: |
RGB Digital Color |
Certification1: |
RoHS |
Color Temperature(CCT): |
5000 |
Input Voltage(V): |
DC 24V |
Warranty(Year): |
3-Year |
Type: |
LED Modules |
Support Dimmer: |
Yes |
Lighting Solutions Service: |
Lighting And Circuitry Design, Project Installation |
Luminous Efficacy(lm/w): |
8 |
Lifespan (hours): |
50000 |
Working Time (hours): |
50000 |
Product Weight（kg）: |
1 |
Chip Material: |
Epistar |
Emitting Color: |
Full Color |
Luminous Intensity: |
10000 |
Luminous Flux(lm): |
8-12 |
Optical Attenuation(%): |
2 |
Power: |
0.72W |
Power Dissipation: |
DC24V |
Viewing Angle(°): |
120-180 |
Color Rendering Index(Ra): |
80 |
Color Temperature: |
RGB With IC |
Storage Temperature(℃): |
-30 - 60 |
Usage: |
Indoor &Outdoor |
LED Type: |
Pixel Light |
Warranty: |
3 Years |
Size Of Led Light: |
30mm |
Application: |
Stage/KTV/shopping Mall |
Color: |
RGB Digital Color |
Certification1: |
RoHS |
XR50 RGB DMX Outdoor LED Pixel Light Sample for Lighting and Circuitry Design
led point lighting source emitting aluminum track chips RGB
Product features:
Street Lighting:
Street lamp decoration: Point light source can be used for street lamp decoration, through the change of different colors and patterns, to add beauty to the street.
Road signs: Use point light sources as road signs, such as crosswalks, turn signs, etc., to improve the safety of drivers and pedestrians.

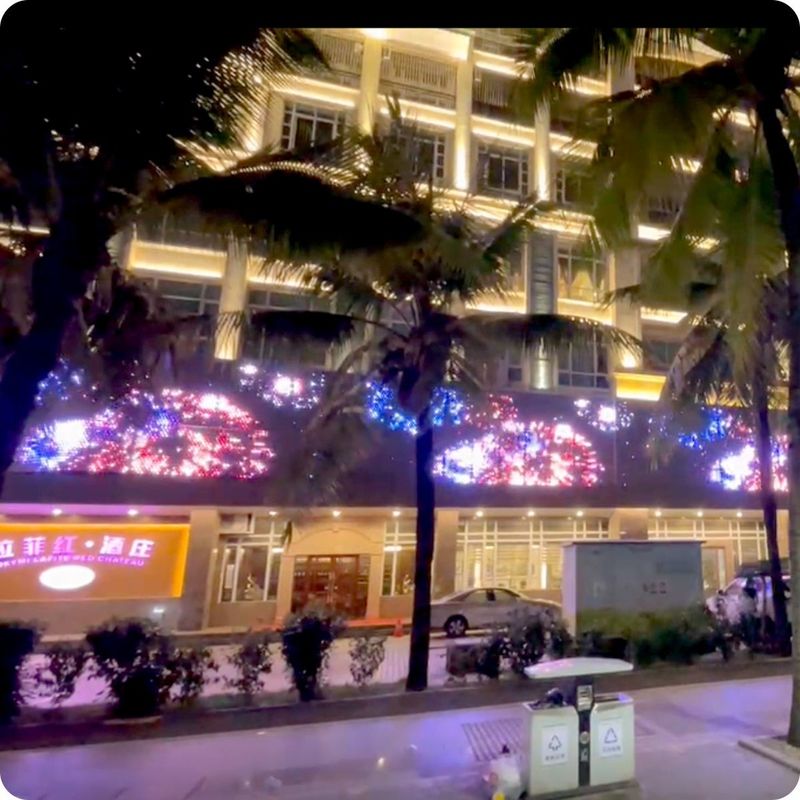

The outline of the building:
Building edge lighting: Point light sources can outline the outline of the building, especially at night, to highlight the structural beauty of the building.
Lighting for historic buildings: For historic buildings and iconic buildings, the use of point lighting can highlight their unique architectural style
XR50 point light source technical parameters
| Basic product parameters | Product protection parameter | ||
| Product model | XQD-XR50-RGB | Waterproof grade | IP67 |
| Product size | Φ50mm*15mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About44.5g | Salt spray test | Salt spray resistance |
| Shell material | PC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 9CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | ||
| Wire core | 2x0.75mm²+3x0.3mm² | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC24V |
| Luminous Angle | 120° | Rated power | 1.44W |
| Color resolution | 3*16bit | Supporting system | |
| Lamp bead | SMD3535*6 | Control system | DMX512 |
| luminance | 12-12.5cd | ||
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
|
Information
|
|
|
|
Item No
|
XQD-XR50
|
|
|
Voltage
|
24V
|
|
|
Power
|
1.44W/1.92W
|
|
|
light color
|
full color/RGB
|
|
|
installation
|
embedded
|
|
|
View angle
|
140 degree
|
|
|
Hole diameter
|
Ø40mm*H14.5mm
|
|
|
Shelf life
|
3 years
|
|
1.View angle:90-180degree
2.Energy efficient,major reduction in power costs
3.Easily installation and maintenance free
4.High visual impact and excellent brightness
1.We will reply your inquiry about our products or prices in 24hours;
2.Well-trained and experienced staffs will answer your enquiries in fluent English;
3.We could accept OEM and ODM,and any your customized Lighting&Controller,we could make your design become a real product;
4.Distributorship are offered for your unique design and some current models.
5.Protection of your sales area,ideas of design and all your private information.
