Home > products > LED Point Lights > LED point light Outdoor landscape waterproof building lighting

LED point light Outdoor landscape waterproof building lighting

Product Details

Place of Origin: Shenzhen

Brand Name: XQD

Certification: CE, RoHS, FCC

Model Number: P series point light source

Payment & Shipping Terms

Minimum Order Quantity: 100PCS

Price: $0.65 - $0.93/PCS

Packaging Details: XQD PACKING/customized

Delivery Time: 10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/Day

Get Best Price
Highlight:

waterproof LED point light

,

Outdoor landscape LED point light

,

building lighting LED point light

Power Source:
DC12v
Material:
Plastic
Lifespan:
50,000 Hours
Installation:
Surface Mounted
Type:
Point Light
Beam Angle:
120 Degrees
Wattage:
1.92W
Voltage:
12V
Color:
RGB
Application:
Indoor/Outdoor
Control Method:
Remote Control
Ip Rating:
IP65
Power Source:
DC12v
Material:
Plastic
Lifespan:
50,000 Hours
Installation:
Surface Mounted
Type:
Point Light
Beam Angle:
120 Degrees
Wattage:
1.92W
Voltage:
12V
Color:
RGB
Application:
Indoor/Outdoor
Control Method:
Remote Control
Ip Rating:
IP65
LED point light Outdoor landscape waterproof building lighting

P series point light source building Park Street Park Lighting





Product features:

Low emitted heat
120º beam projection
Up to 70% energy savings
50w power consumption
IP68 Ingress protection
CE, RoHS, TUV, UL compliant
3 Year Warranty



1. Stable and mature sealing and irrigation structure, good heat dissipation performance, simple installation;

2. Outdoor special waterproof lamp beads, pure color, stable performance;

3. Equipped with high performance driver IC of Mingwei and Liancore, high refresh frequency and good color performance;

4. Spherical luminous surface, uniform and soft light, suitable for all kinds of exhibition lamps,

Entertainment lighting, etc.;





Basic product parameters Product protection parameter
Product model P45-PM-RGB Waterproof grade IP67
Product size Ø45mm*15.2mm Shell flame retardant V-0
Application environment Indoor and outdoor UV resistance grade 4
Product weight About33g Salt spray test Salt spray resistance
Shell material PC Impact resistance IK10
Maximum number of connections 100PCS/string Electrical safety class Ⅲ class
Center distance Minimum 8CM Safety certification CE FCC ROHS
Average product life 50,000 hours Operating temperature -40℃-55℃
Optional accessories Aluminum groove, steel wire buckle
Wire core 2x1mm²+3x0.35mm²
Wire material PVC
PCB material FR-4 Fiberglass board
Product optical parameters Electrical parameters of the product
LED color RGB Operating voltage DC24V
Luminous Angle 120° Rated power 1.44W
Color resolution 3*16bit Supporting system
Lamp bead SMD5050*6LED Control system DMX512
Pixel point luminous flux 40 LM Power supply system DC24V Constant voltage
luminance 12-12.5 cd

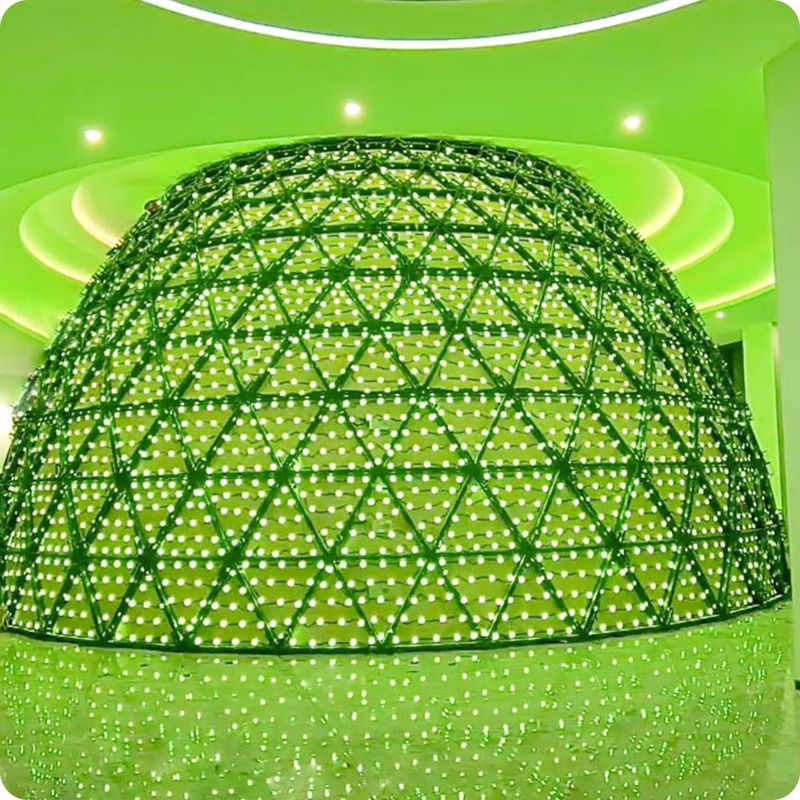

Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots,

building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting ,

shopping malls, supermarkets, kitchen, display, backlight and so on.
