S30 Transparent Led Mesh Screen Curtain Display Wall Building LED Pixel Net Screen

Name: S30 Transparent Led Mesh Screen Curtain Display Wall Building LED Pixel Net Screen
Brand: Shenzhen Xinqidian Photo-Electric Co.,Ltd.
SKU: S30 LED mesh screen
Price: 78.00 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen

Brand Name: XQD

Certification: CE, RoHS, FCC

Model Number: S30 LED mesh screen

Payment & Shipping Terms

Minimum Order Quantity: 10Square

Price: $71.00 - $86.00/square meters

Packaging Details: XQD PACKING/customized

Delivery Time: 10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/Day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                S30 Transparent Led Mesh Screen, Transparent Led Mesh Screen Curtain, S30 LED Pixel Net Screen


Transparency:	70%	Weight:	8kg/panel
Module Resolution:	64 X 64 Pixels	Cabinet Resolution:	128 X 256 Pixels
Brightness:	5000 Nits	Ip Rating:	IP65
Module Size:	250mm X 250mm	Refresh Rate:	1920Hz
Installation:	Hanging Or Wall-mounted	Pixel Pitch:	3.9mm
Viewing Angle:	140°/140°	Power Consumption:	Max 800W/sqm
Cabinet Size:	500mm X 1000mm	Cabinet Material:	Aluminum

Transparency:	70%
Weight:	8kg/panel
Module Resolution:	64 X 64 Pixels
Cabinet Resolution:	128 X 256 Pixels
Brightness:	5000 Nits
Ip Rating:	IP65
Module Size:	250mm X 250mm
Refresh Rate:	1920Hz
Installation:	Hanging Or Wall-mounted
Pixel Pitch:	3.9mm
Viewing Angle:	140°/140°
Power Consumption:	Max 800W/sqm
Cabinet Size:	500mm X 1000mm
Cabinet Material:	Aluminum

S30 Transparent Led Mesh Screen Curtain Display Wall Building LED Pixel Net Screen

S30 LED Curtain Display Net Screen Pixel Led Mesh Screen Wall Building

Feature

Press conference: The press conference uses a grid screen to play video or pictures, provide background information or visual AIDS.
Live broadcast of the stage: the live performance can be enlarged through the grid screen, so that the distant audience can clearly see.

P100-S30 dust proof project screen application description

Product basic parameters		Optional specifications (customizable)
Item	S30 dust proof project mesh screen
Specification	P83.2	P124.8
Application	Outdoor/indoor	Outdoor/indoor
Installation	Steel structural bracing	Steel structural bracing
Product bearing wire	2.0mm steel wire fixation (2 pieces per module)	2.0mm steel wire fixation (2 pieces per module)
Maximum area per small piece	8m	12m
Lights per square meter	144led/m²	64led/m²
Power per square meter	103.67W/m²	46W/m²
The weight per square meter	4.6KG/m²	2.6KG/m²
Viewing Angle	Within 140°	Within 140°
Signal distance	Category 5 network cable within 90 meters	Category 5 network cable within 90 meters
Display mode	Computer/master sync	Computer/master sync
Overall transparency	89%	92%

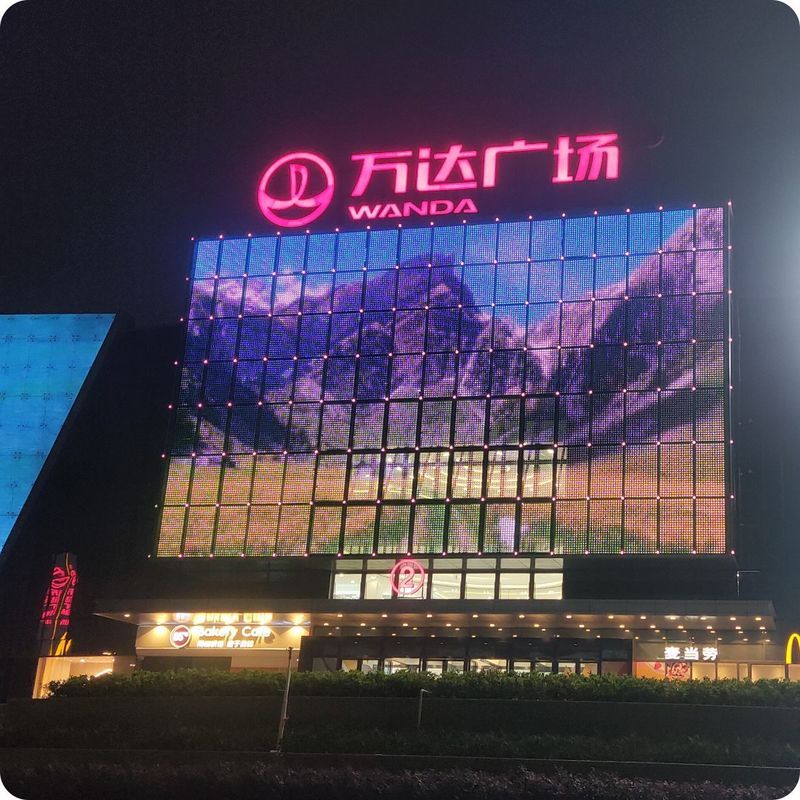

S30 Transparent Led Mesh Screen Curtain Display Wall Building LED Pixel Net Screen 0

S30 Transparent Led Mesh Screen Curtain Display Wall Building LED Pixel Net Screen 1

S30 Transparent Led Mesh Screen Curtain Display Wall Building LED Pixel Net Screen 2

Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.

S30 Transparent Led Mesh Screen Curtain Display Wall Building LED Pixel Net Screen 3

S30 Transparent Led Mesh Screen Curtain Display Wall Building LED Pixel Net Screen 4
